CT-WS / CNC Non-Lifting Vertical / Horizontal Indexing Tables, Built-in style - Hydraulic clamping with Hirth Gear

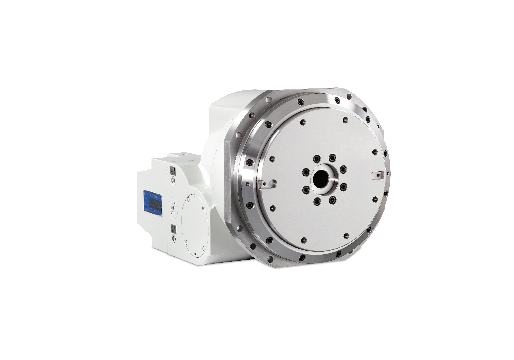

  • CT-250WS

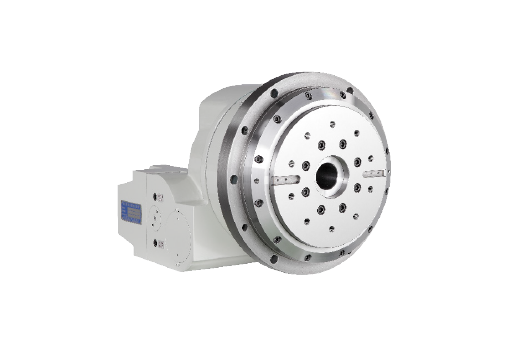

  • CT-350WS

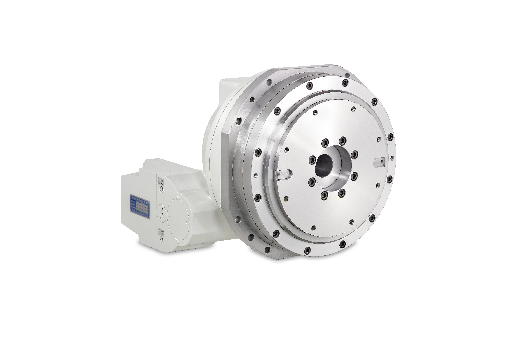

  • CT-450WS

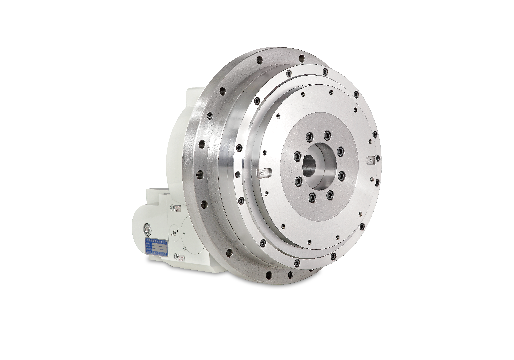

  • CT-600WS

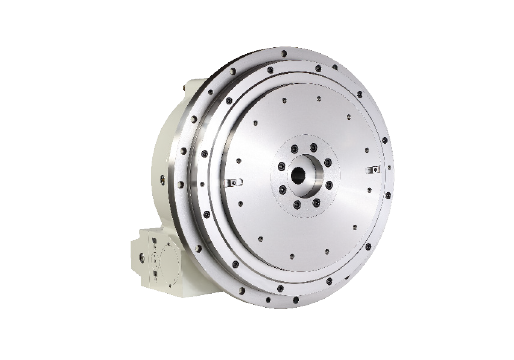

  • CT-800WS


CT-WS Indexing Tables are rotated by a dual lead worm gear driven via a servo motor which provides rapid bi-directional indexing. An integrated hydraulically clamped 3 piece Hirth coupling ensures high accuracy and repetitive positioning, plus rigidity for heavy duty machining applications. The tables are offered with alternate Hirth couplings in-order to meet various index spacing to suit the application requirements.

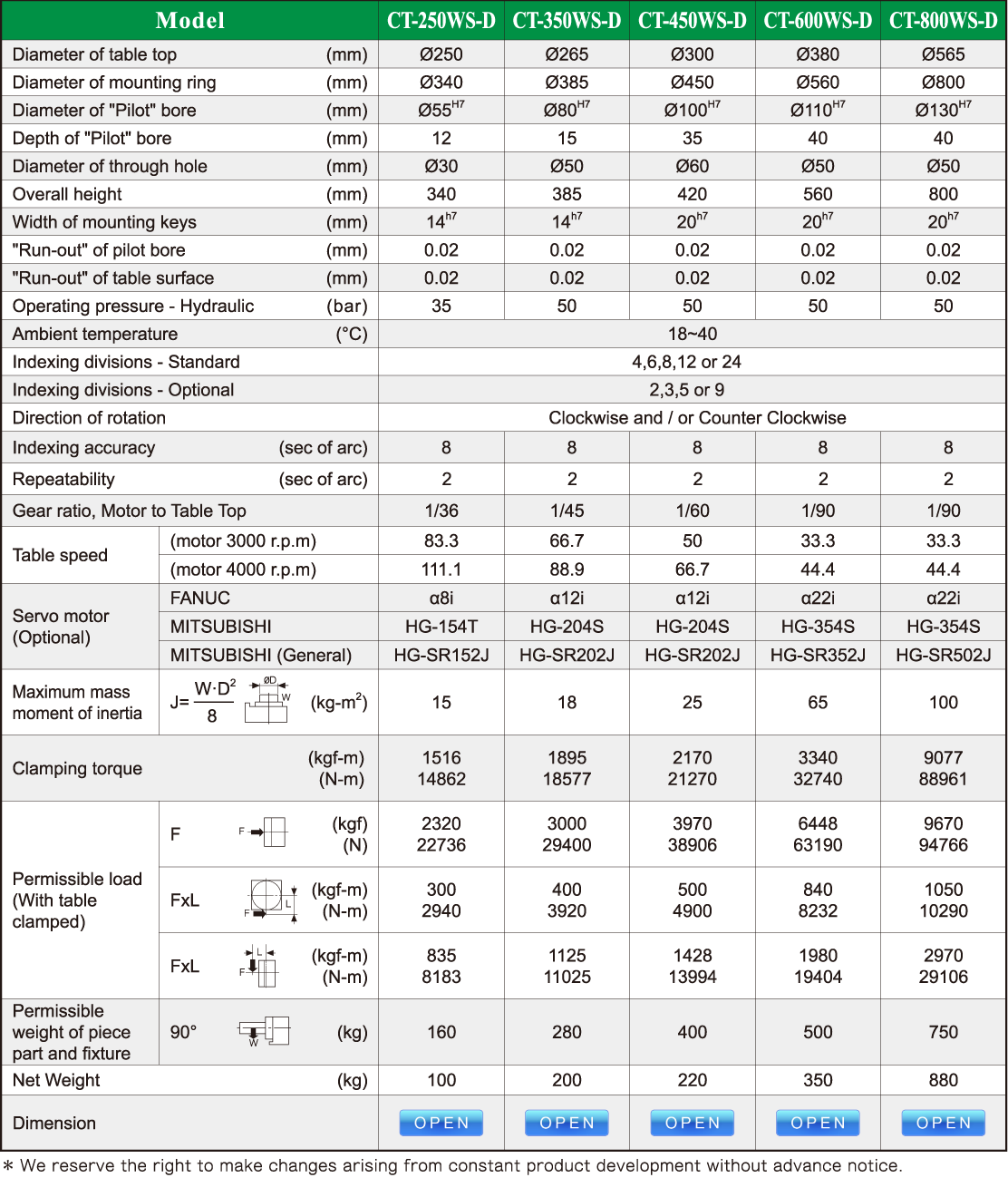

CT-250WS CT-350WS CT-450WS CT-600WS CT-800WS
