CT / Horizontal, Hydraulic Non-Lifting
Indexing Tables with Hirth Coupling Gear

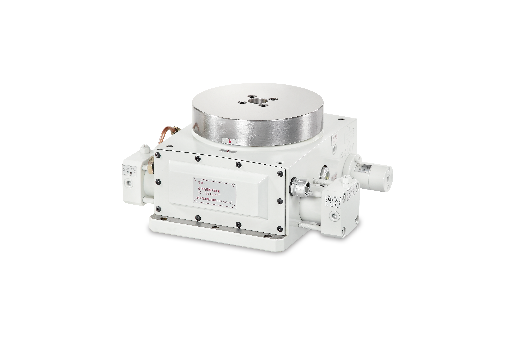

  • CT-200

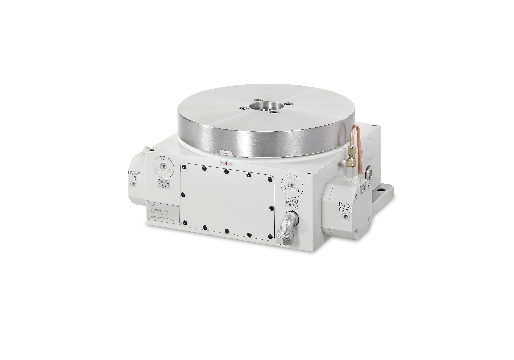

  • CT-340

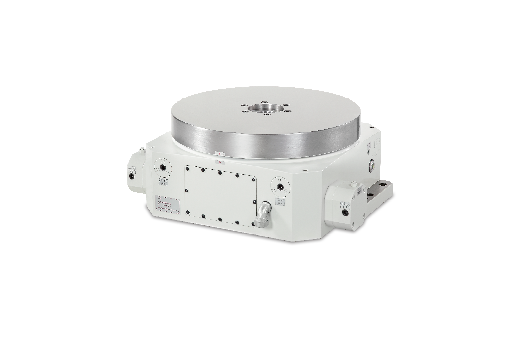

  • CT-470

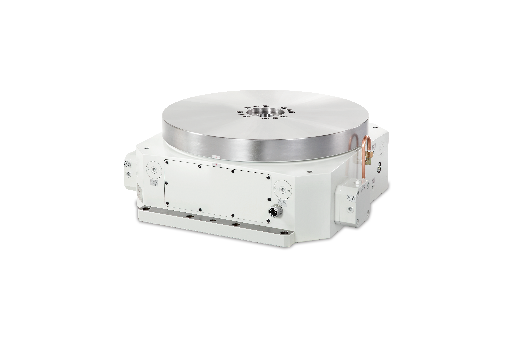

  • CT-600

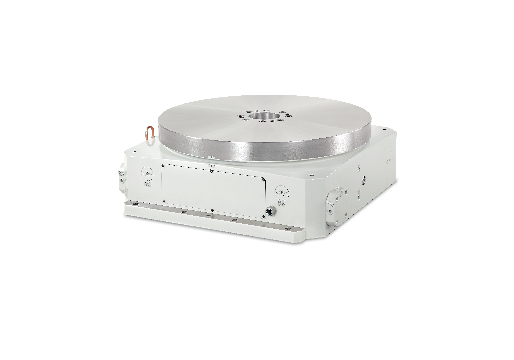

  • CT-800

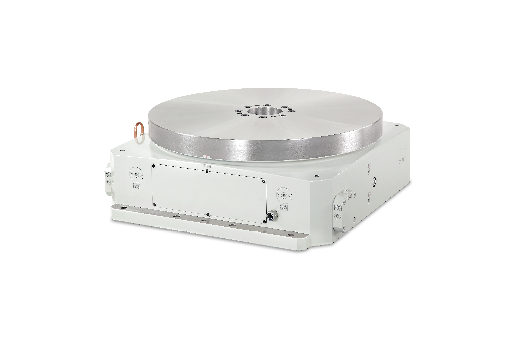

  • CT-1000

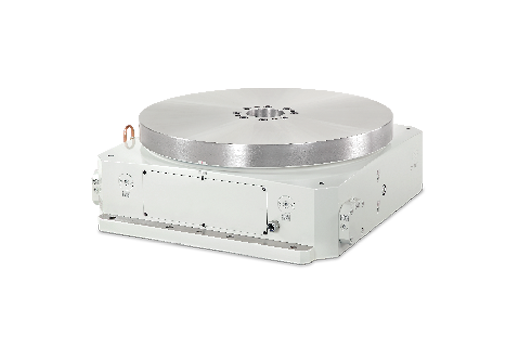

  • CT-1200

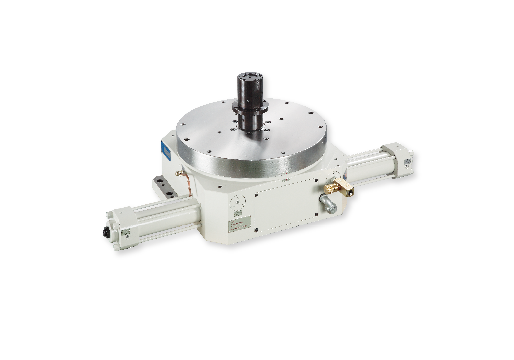

  • CT-470A

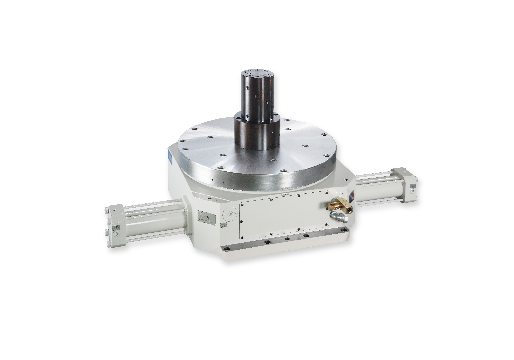

  • CT-600A

The CT series of Indexing Tables are designed with a 3 piece Hirth coupling for high accuracy and repeatability without accumulative error. Table indexing is via a hydraulic rack & pinion which provides high speed repetitive positioning with a smooth motion, the hydraulic clamping system ensures optimal clamping to withstand heavy cutting forces. The tables are offered with alternate Hirth coupling in-order to meet various indexing requirements to suit applications.

NCT-125R(L) NCT-170R(L) NCT-200R(L)
